FID sklopka ABB F202 A-25/0.3 25A 0,3A monofazna Din

Standardna FID sklopka 0,3A 25A monofazna. Definitivno preporučam korištenje iste kod napajanja podnih grijanja ili grijanja plastenika rasadnika, klijališta i slično.
Jeftino rješenje za zaštitu od strujnog udara zbog eventualnih izloženih ili oštećenih elektro vodova električne opreme u kvaru.
Na Din sabirnici zauzima prostor kao 2 automatska osigurača.

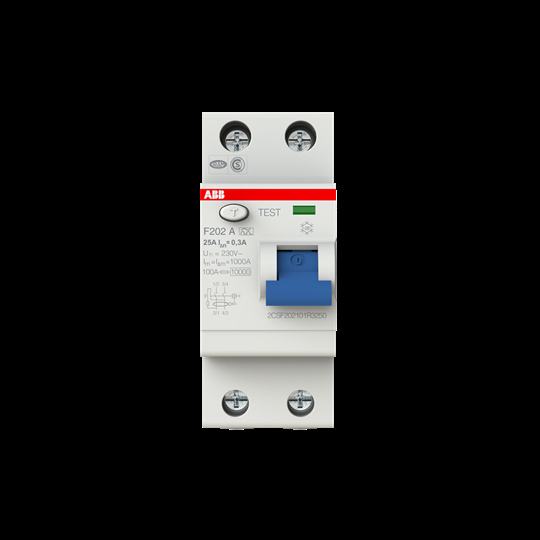

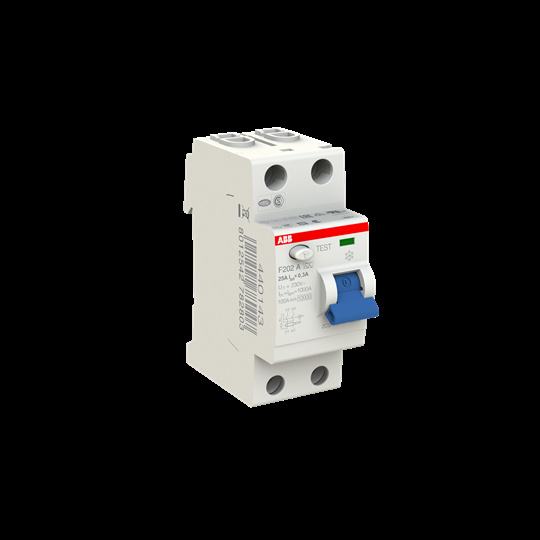

F202 A-25/0.3 Residual Current Circuit Breaker

Specifikacije:
Standards:
IEC/EN 61008
UL 1053
Type of Residual Current:
A type
Rated Voltage (Ur):
230 V
Rated Operational Voltage:
230 V
Rated Insulation Voltage (Ui):
500 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
25 A
Rated Residual Current:
300 mA
Rated Conditional Short-Circuit Current (Inc):
10 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
1 kA
Leakage Current Type:
A
Rated Frequency (f):
50 / 60 Hz
Power Loss:
at Rated Operating Conditions per Pole 1 W
Power Supply Connection:
Arbitrary
Electrical Endurance:
10000 cycle
Number of Poles:
2
Operating Characteristic:
Instantaneous
Mounting Type:
DIN rail
Options Provided:
None
Accessories Available:
Yes
Connecting Capacity:
Busbar 10 mm²
Rigid 25 ... 25 mm²
Flexible 25 ... 25 mm²
Rated Cross-Section:
4 - Multi-Wired 0...25 mm²
1 - Solid-Core 25...25 mm²

Environmental
Ambient Temperature:
-25...55 °C
Ambient Air Temperature:
Operation -25...55 °C
Degree of Protection:
IP2X
Pollution Degree:
2
Resistance to Vibrations acc. to IEC 60068-2-6:
0.1 mm or 1 g - 20 cycles at 5…150…5 Hz
Resistance to Shock acc. to IEC 60068-2-27:
25g / 2 shocks / 13 ms
RoHS Status:
Following EU Directive 2011/65/EU
Environmental Information:
Refer to RoHS

Technical UL/CSA
Maximum Operating Voltage UL/CSA:
277 V AC

Dimensions
Width in Number of Modular Spacings:
2
Product Net Width:
0.035 m
Product Net Height:
0.085 m
Product Net Depth / Length:
0.069 m
Product Net Weight:
0.200 kg
Built-In Depth (t2):
69 mm

U ponudi imam i raznu drugu elektroničku opremu.

šaljem dostavom po želji o trošku kupca ili osobno preuzimanje

Ako se šalje preporučenom poštom uz avansno plaćanje na račun poštarina je 20kn
Ako se šalje preporučenom poštom+ plaćanje pouzećem cijena slanja je cca 30kn
