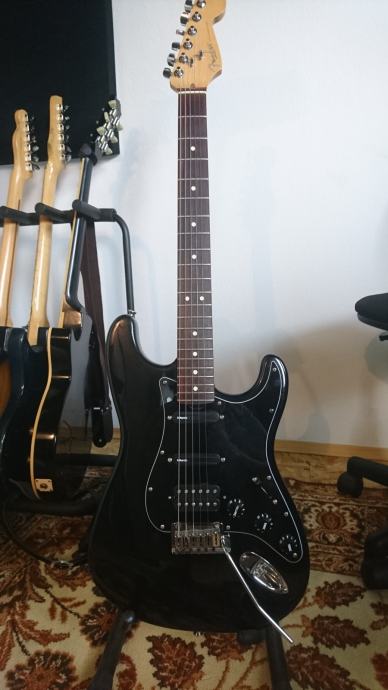

DiMarzio Andy Timmons Loaded Strat Pickguard DP224FAT-1, DP187Cruiser

Kompletan "loaded" pickguard za stratocaster tip gitare. Sastavljen u američkoj firmi po specifikaciji koju koristi Andy Timmons. Naručio, instalirao, probao i zaključio da ipak nije za mene. Specifikacija sa njihove stranice je u nastavku.
Kontakt na mob. Šaljem poštom.


DiMarzio Andy Timmons Loaded Strat Pickguard DP224F AT-1, DP187 Cruiser WH/WH

920D Custom Shop Loaded pickguards feature point to point hand soldered connections with Gavitt vintage style cloth wire, CTS 500K split shaft pots, an original CRL 5-way switch, custom cut pickguards, and top quality knobs and buttons. This Andy Timmons pickguard includes a DiMarzio DP224F AT-1 in the bridge position and two DP187 Cruiser bridge pickups in the neck and middle positions. The 4th selector position splits the dual coil humbucker. There is also a treble bleed. This is an "in your face" loaded pickguard.

* DiMarzio DP224F AT-1 Pickups (Bridge)
* DiMarzio DP187 Cruiser Pickups (Neck and Middle)
* 3 Ply 11 Hole Pickguard, Black
* Fender Skirted Knobs, Black
* CTS 450G Series 500K Pots
* Original CRL 5 Way Switch
* Gavitt Vintage Style Cloth Wiring
* .022µF Orange Drop Capacitor
* Easy Installation

Switch Positions

1. Bridge
2. Bridge (Inside coil) + Middle
3. Middle
4. Neck + Middle
5. Neck


DiMarzio DP224F AT-1 Pickups

A player 's player is a perfect description for Andy Timmons. He has great touch, phrasing, and tone. Since 2001, he has been playing a DiMarzio custom bridge humbucker that has only been available on his signature Ibanez guitar, and it has been his first-line pickup ever since. The outstanding characteristics of the DiMarzio AT-1 are balance, warmth, and clarity. It achieves this blend with the same patented technology as the PAF 36th Anniversary but the sound is hotter and the focus is rock.

Tech Talk

The DiMarzio AT-1 was originally designed for a 25 scale but it adapts very well to other instruments. It has enough bass and mids to warm up brighter guitars, and enough clarity for 24 scale set-necks as well.

Specs

Wiring: 4 Conductor
Magnet: Alnico 5
Output mV: 320
DC Resistance: 16.50 K
Year of Introduction: 2001

DiMarzio DP187 Cruiser Pickups

If you 're a serious traditional Strat player, you probably won 't want to know about pickups with side-by-side coils. But if you 're the player who 's up for something more modern with no 60-cycle hum, string drop-outs or sustain-killing magnet pull, we designed The Cruiser for you. Harmonic overtones are right where you expect them to be from a true single-coil, and the mid-range is open and vocal-sounding. It 's hotter than the traditional single-coil, and the bass strings have a bit more chunk; this is an excellent pickup to combine with medium-output humbuckers, and it maintains its tonal identity with high-gain amps and multiple effects.

Tech Talk

The obvious question about The Cruiser is How does it compare to a single-coil sound? Our feeling is that the unwound strings ( E , B , and G ) are very close, and the wound strings ( D , A , and low E ) are fatter-sounding than a true single-coil. There's also a midrange scoop that's unique to the Cruiser Bridge. This is really effective for getting big-sounding chords, because high and low strings sound more spread out from each other. Having a total magnet pull that's about 40% less than standard single-coils also means The Cruiser can be adjusted much closer to the strings for more power than stock pickups can achieve.

Specs

Wiring: 4 Conductor
Magnet: Ceramic
Output mV: 143
DC Resistance: 5.75K ohm
Year of Introduction: 1994
