Digitalni 110 ohm AES/EBU kablovi

Podajem SOMMER CABLE AES/EBU 110 ohm digitalne kao i XLR analogne . Kablovi su korišteni oko 3 godine na studio monitorima .

- 1 AES/EBU dužina 2 metra ................ 40€
- 1 AES/EBU dužina 3 metra ................ 55€
- 1 par XLR balansirani 1 metar ............ 60€
- 1 par XLR balansirani 1,5 metara ....... 80€

OSNOVNE TEHNIČKE ZNAČAJKE KABLOVA

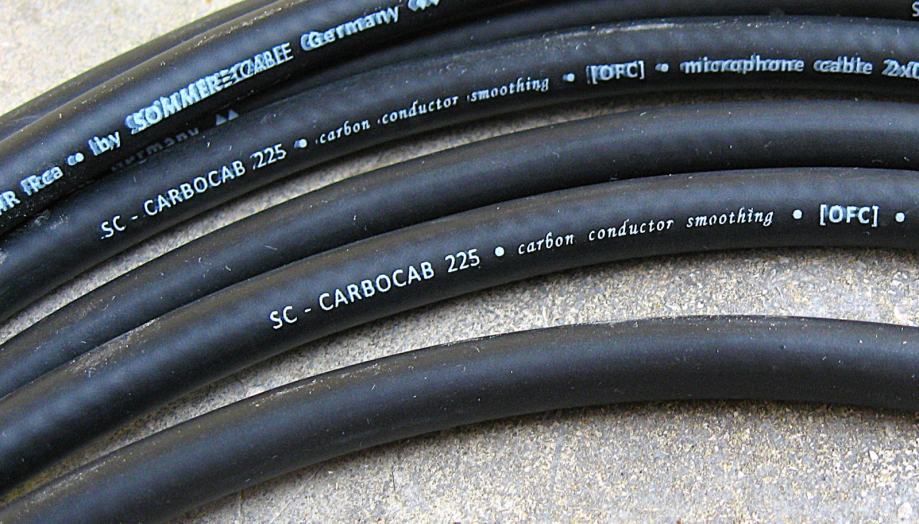

SOMMER CABLE - SC-CARBOKAB 225
It is every year ...
that emerge new processes of development of studio cables. The current trend is towards the use of solid conductors, having better conductivity due to the homogeneity of the surfaces, and a wiring technique that improves the audio qualities. Theoretical facts, because a solid conductor also has disadvantages: it is hard, so that a slight bending of the cable can already damage the insulation; the ductility is restricted, and each curvature produces a crushing of the outer layers. Without underestimating the traction forces on the connection terminals. This is why Sommer Cable has designed the SC-CARBOKAB 225 cable, characterized by a special process of smoothing the conductive surfaces: a very dense carbon layer coats the concentrically braided cores. The conductivity is thus comparable to that of solid wires, but the conductors are highly flexible and have excellent and durable technical characteristics. Because of these qualities, the SC-CARBOKAB 225 cable guarantees an absolutely linear and faithful acoustic reproduction up to a distance of 200 meters. Remarkable is also the shielding with 100% covering (fleece AL + tress Cu), to counter the high density of peripheral electromagnetic perturbations of the studios (effects devices, computers, synthesizers, etc.). Special HD-PP mixing insulation guarantees very low capacitive values. With this cable, you will be "State of the art" and will be able to spare you all the "esoteric" and tiring discussions!br>

ADVANTAGES:

Following the carbon smoothing process, audio qualities comparable to that of a solid conductor
Low capacity value due to high-end HD-PP insulation
Excellent shielding by Cu braid (with drain wire) and AL fleece
Excellent conductivity thanks to the use of copper without oxygen (quality 6)

USE:

Highly specialized technique for studio and installations
Broadcasting and broadcasting technology for mobile stations
High-quality hi-fi connection (red and white wire to terminal 1, separate shield)




Specifications:
Constitution (2LI2Y0,25mm2) (ST) CY
Envelope, diameter S-PVC 7.6 mm
AWG 23
Conductor inside 2 x 0.25 mm 2
Brass Cu per core 65 x 0.07 mm
Insulation of the conductor HD-PP 1.55 mm
Protection plaited copper braid 95% + fleece AL + drainage wire
Optical cover 100%
Operating temperature min. -25 ° C
Operating temperature max. 70 ° C
Fire resistance per m 0.22 kWh
Weight per m 75 g
Packaging unit, packing unit per meter
Color black

Electrical Specifications:
Capacity metric cond./cond. 46 pF Metric Capacity Screen / Display 90 pF
Odometer Resistance, Conductor
