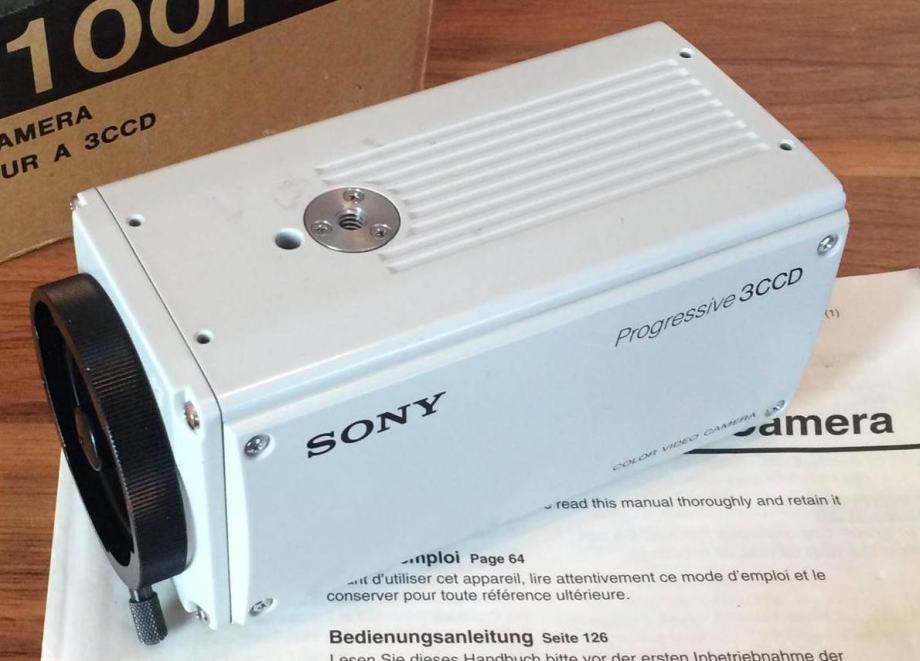

Sony DXC-9100P 3 CCD video kamera

Image device: 1/2-inch Interline Transfer Hyper HAD CCD (x3)
Sensing area: 6.4 x 4.8mm
Signal format: PAL standard format:
525 lines
Lens mount: 1/2-inch, 38mm bayonet
Sensitivity: F5.6 at 2,000 lx (3200K)
Minimum illumination: 15 lx (F1.4, Gain: 18dB)
Signal-to-noise ratio: 58dB
Gain control: AGC/0~18dB (1dB steps)
Electronic shutter: OFF/STEP/VARIABLE/CCD IRIS
STEP: 1/60, 1/100 (Flickerless mode), 1/125, 1/250, 1/500, 1/1000,
1/2000,1/4000, 1/10000 (seconds)
0.1, 0.2, 0.3, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0,
7.0, 8.0 (seconds)
VARIABLE: 255 to 1 frame, 262/525 to 1/525H
External trigger shutter: ON/OFF switchable
Freeze control: INT. CTRL/EXT. CTRL switchable
AE Window: Large/Medium/Spot (Peak/average switchable)
Color temperature: 3200K/5600K
White balance: ATW, AWB (R/B Paint: -10 to 0 to +10)
MANU (R/B Gain: -127 to 0 to +127)
Master pedestal: -99 to 0 to +99
Detail: On/OFF switchable (-99 to 0 to +99)
Gamma: ON/OFF switchable
User preset: A/B switchable
User protect: ON/OFF switchable
Baud rate: 9600, 4800, 2400, 1200
Trigger pulse: Negative pulse/Positive pulse switchable
Video out: VBS: 1.0Vp-p, 75½, sync negative
RGB: 0.7Vp-p, 75½
Y/C: Y: 1.0Vp-p, 75½, sync negative
C: 0.286Vp-p, 75½, without sync
VGA, RGB: 0.7Vp-p, 75½
SYNC/HD/VD: 2Vp-p, 75½
WEN: 5Vp-p, high impedance
External sync input: VBS/BS/VS/SYNC/HD/VD (VBS 1.0Vp-p or burst 0.3Vp-p,
SYNC 0.3Vp-p, HD/VD: 2.0~4.0Vp-p), 75½
External trigger input: Trigger pulse, low level: 0 to 0.5V,
high level: 4.5 to 5.0V, high impedance
Operating temperature: -5°C to 45°C (23°F to 113°F)
Storage temperature: -20°C to 60°C (-4°F to 140°F)
Power requirements: DC 12V (supplied from CMA-D2 or CCU-M5)
Power consumption: Approx. 11.5W
Mass: Approx. 790g (1 lb 11 oz)
Connectors: LENS (6-pin), RGB/SYNC (D-sub 9-pin),
DC IN/VBS (12-pin), VIDEO OUT (BNC), CCU (20-pin),
REMOTE (8-pin), EXT CTRL (BNC), HOT SHOE (14-pin)
