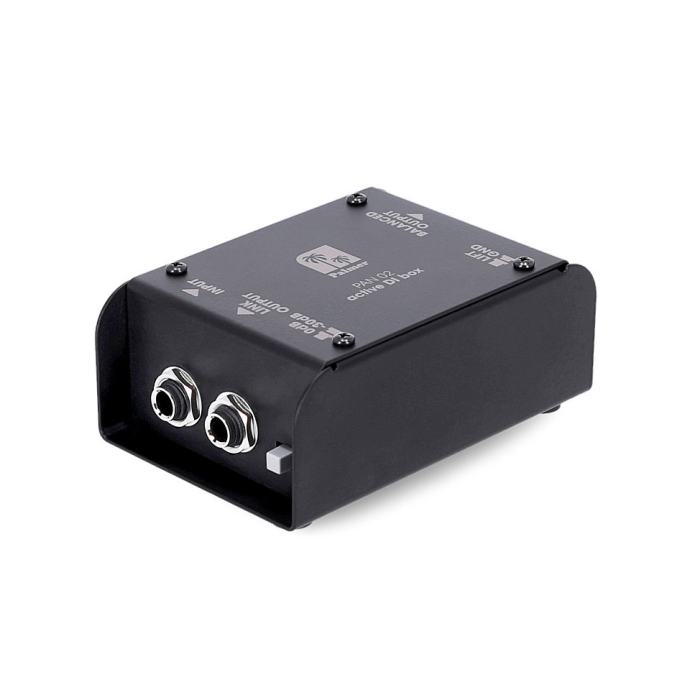

Palmer PAN02 - 1-kanalni aktivni DI Box

Palmer PAN02 - 1-kanalni aktivni DI Box

MPC: 122€, cijena za gotovinu/virman: 85,00€


Standard active DI box. Can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than with a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special "floating ground" circuitry enables ground lift even during phantom power operation. Metal case 110 x 73 x 42 mm.


SPECIFICATIONS:

Product type: DI Boxes
Type: active
Channels: 1
Inputs: 1
Input: connectors 6.3 mm jack
Max. input level: + 45 dBu
Input impedance (@ 60 Hz): 1 MOhm
Input pad: 0 / -30 dB
Outputs: 1
THRU outputs/channel: 1
Output connectors: 6.3 mm jack , XLR
Max. output level: + 10 dBu
Output impedance: 600 Ohm
Frequency response: 10 - 20000 Hz
Transformer balanced: Yes
Ratio: 1 : 1
Controls: attenuator, ground lift
Operating voltage: +48 V phantom power, 9 V block
Power consumption: 3.8 mA (9V), 4 mA (48V)
Cabinet material: sheet steel
Cabinet surface: Powder coated
Width: 110 mm
Depth: 73 mm
Height: 42 mm
Weight: 0,353 kg
